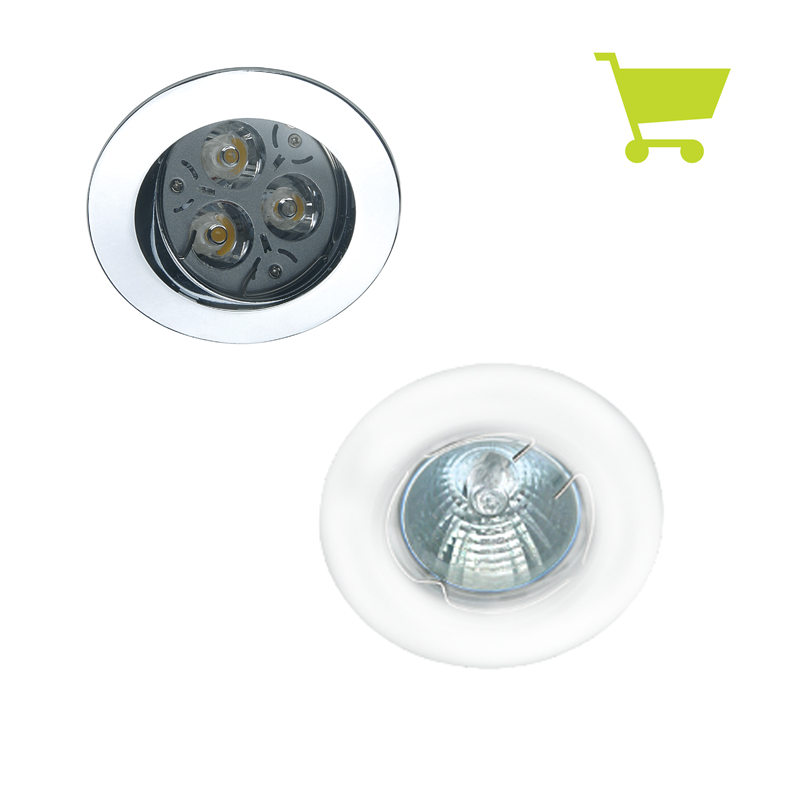

Halogen kit for a recessed mini incasso downlight.
L E D kit for a recessed mini incasso downlight.

mini incasso

Send Inquiry

This miniature low-voltage series offers a range of trims and finishes to address a wide variety of design requirements.

Share this product:

Standard Features

electrical

  • Electrical rating: 12 volt
  • Power Cord: 18/2 SPT-2 (black)

lighting source

  • MR16 (halogen and LED)

dimensions

  • Diameter (overall, including flange): 3 1/4″

construction

  • Die cast steel and machined aluminum

finish

  • Painted: black (BK), white (WH)
  • Plated: polished chrome (PC)

installation

  • Spring clips (provided with trim)
  • Installation hole diameter 2 7/8″

warranty/certification

  • 1 year
  • UL and cUL recognized transformer (halogen)
  • UL and cUL listed driver (LED)

options

  • Other trim styles
  • Other lamp options
  • Contact factory for custom options

Product Downloads

Product Spec Sheet
Product Installation Instructions

Product Specs

mini incasso ordering information

item number (adjustable)item number (fixed)descriptionfinish
354-900354-901trim (MR16)white
354-910354-911trim (MR16)black
354-920354-921trim (MR16)polished chrome

power supply

item number w/ 3 port connectoritem number w/ 6 port connectordescription
354-300354-37060W transformer for halogen, no rollswitch
354-310354-35060W transformer for halogen, with rollswitch
75-00375-00624W driver (non-dimmable) for LED, 10' power cord, 24" connector lead

replacement lamps

item numberwattsdescription
398-033 watts3MR16,12V, LED, WW, GU5.3 base
398-35010 watts10MR1612V, GU5.3 base
398-37320 watts20MR1612V, GU5.3 base
485-13235 watts35Q35MR16C/CG40, GU5.3 base
398-37237 watts37MR16/HIR/CG25, GU5.3 base
398-40050 watts50MR1612V, GU5.3 base
485-13350 watts50MR1612V-Flood, GU5.3 base

accessory

item numberdescription
7000-0052socket with 48" connecting lead
