Product Specs

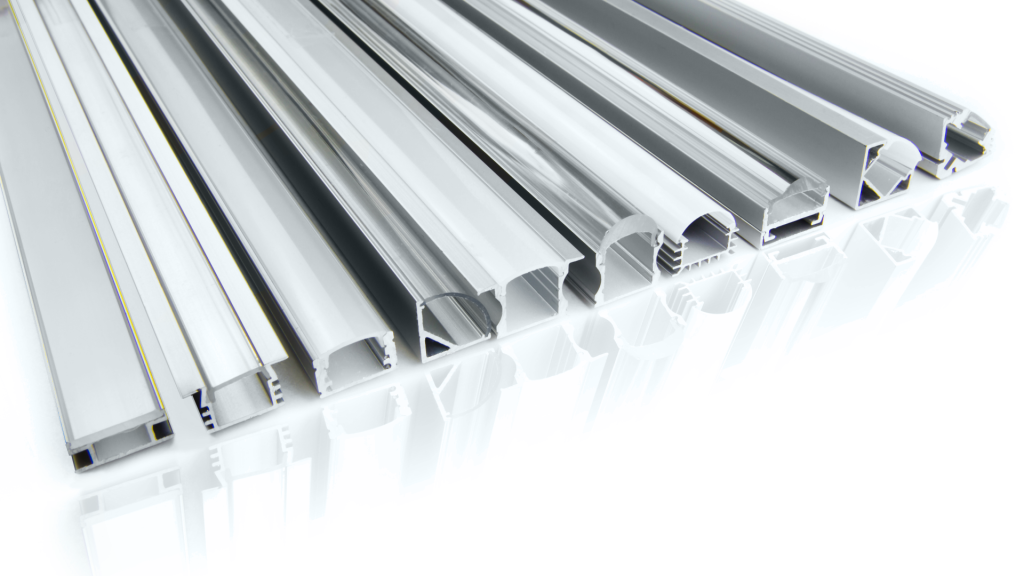

Aluminum LED Mounting Channels | See Product Catalog for more information
| Model | Length (mm) | Width (mm) | Height (mm) | Light Source Width (mm) | Material | Installation |
|---|---|---|---|---|---|---|
| TLA -6 | 2500 | 8 | 6 | 6 | anodized aluminum | surface / recessed |
| TLA -7 | 2500 | 8 | 10 | 6 | anodized aluminum | surface / recessed |
| ILA-8 | 2500 | 23.2 | 8.7 | 6 | anodized aluminum | recessed |
| TLA-8 | 2500 | 17 | 8.7 | 12.4 | anodized aluminum | surface |
| ILA-11 | 2500 | 23.2 | 11.7 | 12.4 | anodized aluminum | surface |
| TLA-11 | 2500 | 17 | 11.7 | 12.4 | anodized aluminum | surface |
| ILA-10 | 2500 | 36 | 9.5 | 20 | anodized aluminum | recessed |
| TLA-10 | 2500 | 23.4 | 9.5 | 20 | anodized aluminum | surface |
| ILA-12 | 2500 | 36 | 12.5 | 20 | anodized aluminum | recessed |
| TLA-12 | 2500 | 23.4 | 9.5 | 20 | anodized aluminum | recessed |
| ILA-15 | 2500 | 23.2 | 15.5 | 12.4 | anodized aluminum | recessed |
| TLA-15 | 2500 | 17 | 15.5 | 12.4 | anodized aluminum | surface |
| ILA-16 | 2500 | 21 | 11 | 11 | anodized aluminum | recessed |
| TLA-16 | 2500 | 19 | 11 | 11 | anodized aluminum | recessed |
| ILA-35 | 2500 | 50 | 35 | 25.8 | anodized aluminum | recessed |
| TLA-35 | 2500 | 35 | 35 | 25.8 | anodized aluminum | surface / suspending |
| ILA-40 | 3000 | 55 | 35 | 30.8 | anodized aluminum | recessed |
| TLA-40 | 3000 | 40 | 35 | 30.8 | anodized aluminum | surface / suspending |
| ILA-50 | 3000 | 65 | 35 | 38.8 | anodized aluminum | recessed |
| TLA-50 | 3000 | 50 | 35 | 30.8 | anodized aluminum | surface / suspending |
| ILA-65 | 3000 | 65 | 76 | 31.6 | anodized aluminum | recessed |
| TLA65 | 3000 | 50 | 75 | 31.6 | anodized aluminum | surface |
| ILA-75 | 3000 | 70 | 75 | 29.4 | anodized aluminum | recessed |
| TLA-75 | 3000 | 50 | 35 | 30.8 | anodized aluminum | surface / suspending |
| ILA-100 | 3000 | 117 | 35 | 81 | anodized aluminum | recessed |
| TLA-100 | 3000 | 102 | 35 | 81 | anodized aluminum | surface / suspended |
| FLA-9 | 2500 | 52.3 | 8.4 | 12.2 | anodized aluminum | surface |
| TLA-21 | 2500 | 19 | 20.3 | 16.9 | anodized aluminum | surface |
| OLA-12 | 2500 | 15.5 | 18 | 10.8 | anodized aluminum | surface |
| MLA-16 (no wings) | 2500 | 14 | 16.1 | 11 | anodized aluminum | surface |
| MLA-16 (wings) | 2500 | 26 | 16.1 | 11 | anodized aluminum | recessed |
| CLA-10 | 3100 | 10 | 10 | 6 | anodized aluminum | surface (designed for corners) |
| CLA-16 | 2500 | 19 | 11 | 11 | anodized aluminum | surface (designed for corners) |
| ILA-19 | 2500 | 18.5 | 18.5 | 12.4 | anodized aluminum | surface (designed for corners) |
| CLA-30 | 2500 | 30 | 30 | 620.2 | anodized aluminum | surface (designed for corners) |
| SLA-70 | 2500 | 26.2 | 70 | 12.4 | anodized aluminum | recessed for wall mount |
| TUBELINE-6 | 2500 | Ø16 | Ø16 | 10.2 | anodized aluminum | rotatable in 15° steps ±45° in both directions |
